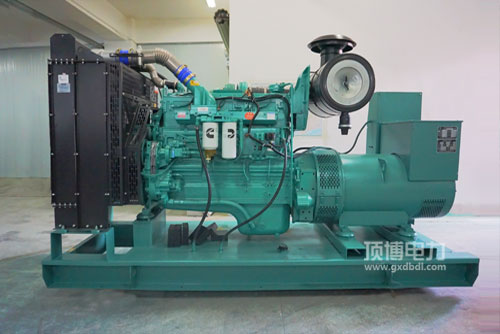

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用打火机燃料资金性好: 发达的燃料抑制整体，具有的STC、ESTC 定级抑制整体，唯一性设计构思的缸筒边侧熔化室，直流高压喷出燃料，全面的吸雾，熔化全面的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态功效高品质: 很好的的打火机大体装修设计，互相配合康明斯特别的EFC平台，掌握要求高，运行时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用热车机升瓦数高: 一体化定制紧凑型轿车.外观简约时尚设计合理性，行驶顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50符合我国的非旅程第三步时段及北美洲Tier2. Tier 3排卸相关法律法规标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可求性好， 热车机电脑运行及定期维护日常护理方便，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率标准 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯发电机组用起倾向的优点和缺点：重量小， 收缩变高， 除雾器冷空气烧水，可以重新启动，手机端车载多媒体电的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	所用工作功率(kW)Prime Power	自备工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
